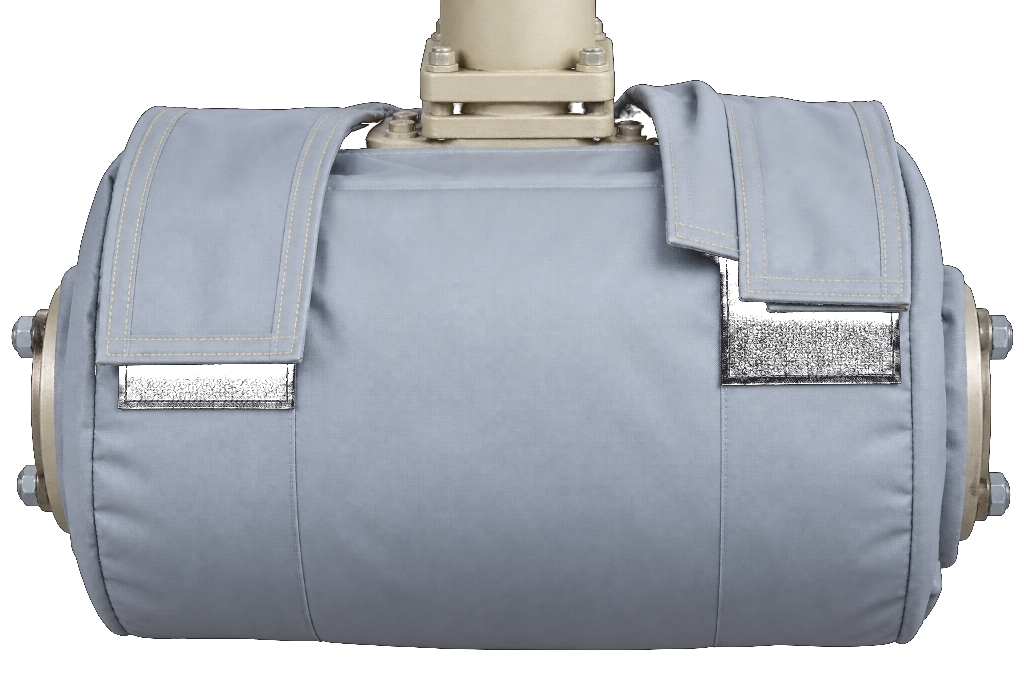

Pump Insulation Jackets
Custom removable thermal insulation covers engineered for industrial centrifugal pumps, boiler feed pumps, chemical transfer pumps, and motor pump skid units.
Thermal Stabilization & Operator Safety for Process Pumps
Industrial pumps handling high-temperature hot water, thermal fluid, hydrocarbons, or chemical slurries suffer heavy thermal radiation loss. The uninsulated volute and impeller casing create extreme heat hazard zones and accelerate mechanical seal degradation.
Heaton Removable Pump Jackets are precision-tailored to wrap securely around complex pump volutes, suction/discharge nozzles, and shaft seals. They allow rapid 5-minute removal during impeller inspection, seal maintenance, or vibration checks.
Pump Jacket Technical Specifications
Engineered for centrifugal, gear, reciprocating, diaphragm, and boiler feed pump geometries.
| Parameter | Standard Process Pumps | High-Temp Thermal Fluid Pumps | Severe Service & Slurry Pumps |
|---|---|---|---|
| Operating Temp Range | -20°C to 250°C | 250°C to 450°C | Up to 550°C |
| Outer Jacketing | 17 oz Silicone Coated Fiberglass | PTFE / Heavy Fiberglass Cloth | Aluminized Wire Mesh Reinforced |
| Insulation Core | E-Glass Needle Mat (25mm - 50mm) | Hydrophobic Pyrogel / Aerogel | High-Purity Ceramic Fiber Core |
| Fastening Hardware | Nomex Straps & SS D-Rings | SS304 Lacing Hooks & Tie Wire | Quick-Release SS Toggle Clamps |
| Drainage & Port Cutouts | Gland & Casing Drain Cutouts | Laser-Measured Seal Port Access | Reinforced Cutouts with Flaps |
Need Custom Pump Insulation Jackets?
Provide your pump make, model, nozzle dimensions, and line operating temperatures for a rapid custom quote.
