Engineered Industrial Insulation Jackets
Custom removable thermal insulation covers and heating jackets designed for valves, pumps, vessels, flowmeters, gas chromatographs, band heaters, and process equipment operating from -50°C to 1000°C.
Removable Valve Insulation Jackets
Custom-fit removable covers for gate, globe, ball, butterfly, and control valves. Designed for rapid 5-minute removal during gland repacking or routine inspection.
- Temp rating up to 650°C
- Quick D-ring & Velcro strap
- Weatherproof outer shell
- Cuts ambient room temp
Pump Casing & Motor Insulation Jackets
Thermal stabilization and personnel protection covers for centrifugal pumps, chemical transfer pumps, slurry pumps, and skid-mounted pump motor assemblies.
- Temp rating up to 550°C
- Protects shaft seals
- Acoustic noise dampening
- Fast strap latching

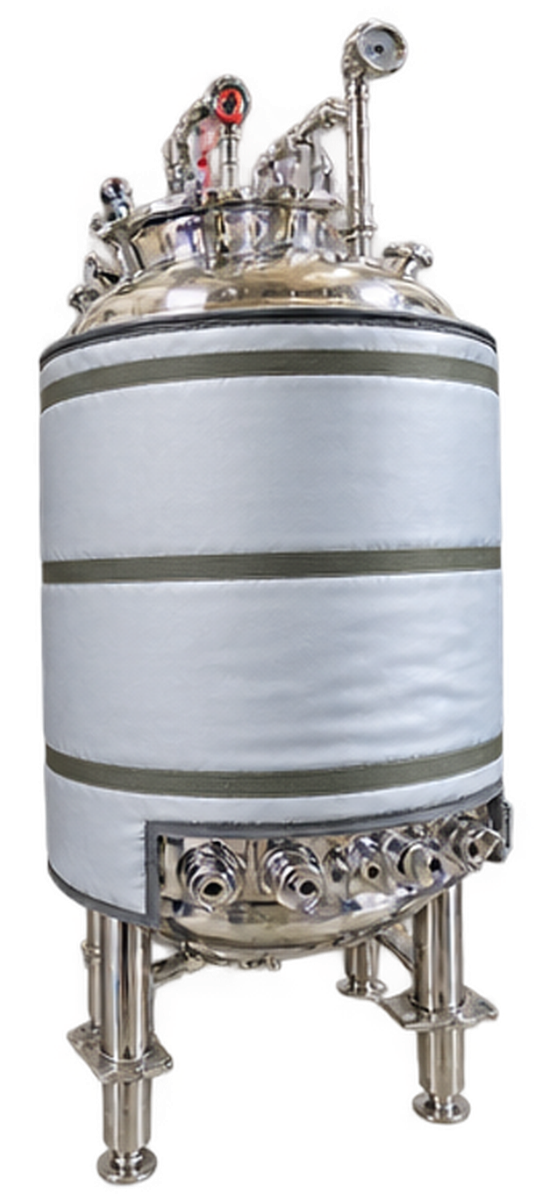

Vessel, Tank & Heating Jackets
Modular multi-band thermal blankets and electrical heating jackets for storage tanks, chemical reactors, and mobile mixing vessels with precise temperature retention.
- Modular panel design
- Optional heating elements
- Cuts heating power cost
- Cutouts for sight ports
Flowmeter & Flow-Cell Insulation Jackets
Engineered thermal protection for Coriolis mass meters, vortex sensors, and laboratory optical flow cells. Eliminates thermal gradient drift while keeping transmitter heads cool.
- Coriolis & Mag meter fit
- Prevents measurement drift
- Exposed transmitter display
- Quick-wrap installation
Gas Chromatography Thermal Jackets
Isothermal heated jackets and enclosures for gas chromatograph sample valves, vaporizers, and analytical columns to eliminate cold spots and sample condensation.
- Uniform temp up to 250°C
- Integrated RTD sensors
- Zero cold spot design
- Cleanroom compliant

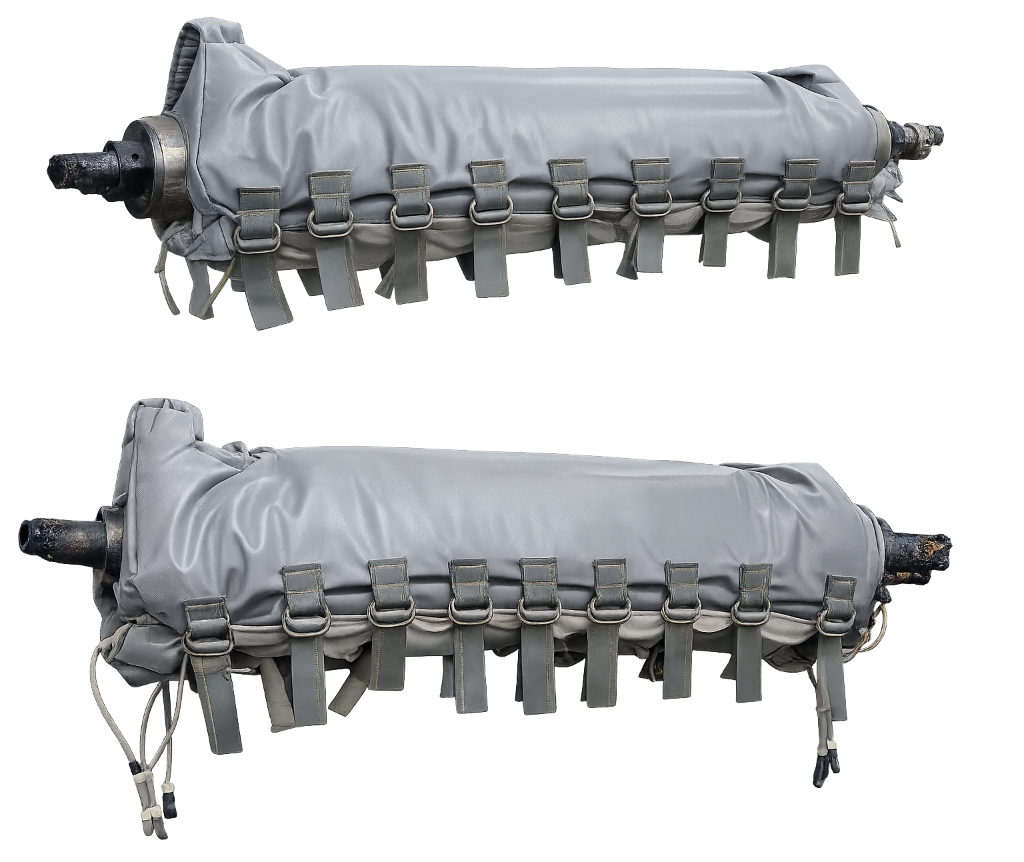

Band Heaters & Barrel Insulation Jackets
Energy-saving thermal insulation blankets for plastics extrusion barrels, blow moulding lines, and injection moulding heating zones. Cuts power draw by 30% to 50%.
- 30% - 50% Electricity cut
- Faster heater warmup
- Touch-safe (<50°C)
- Sensor wire cutouts

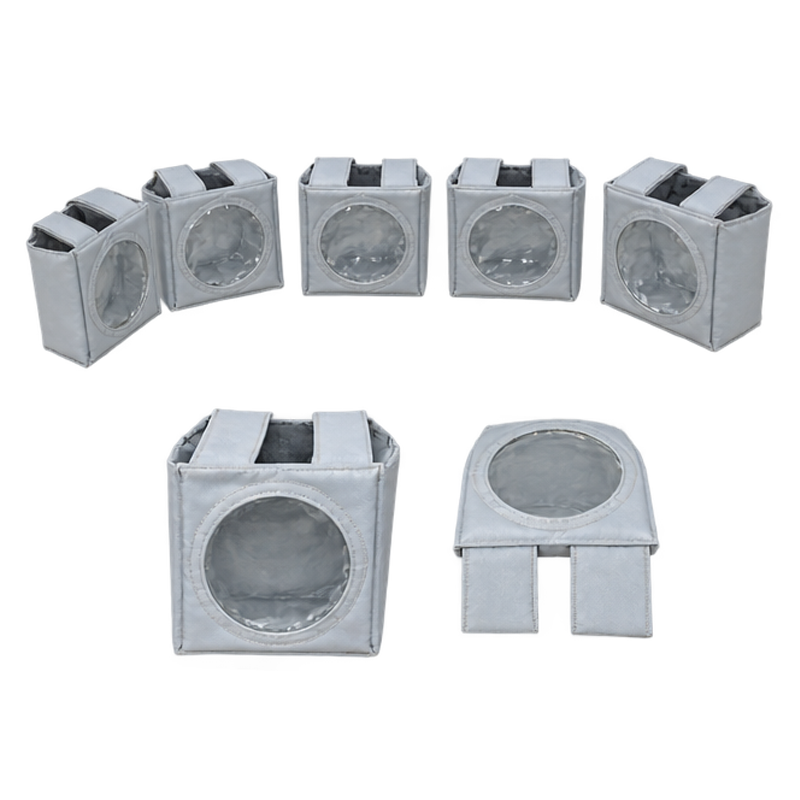

Pressure Gauge & Sight Glass Covers
Form-molded thermal covers equipped with transparent optical viewing windows for pressure gauges, level glasses, and differential pressure manifolds.
- Clear viewing window
- Prevents freeze plugging
- UV & Weatherproof shell
- Fits 2.5" to 6" dials
Plunger & Custom Equipment Insulation Jackets
Custom split jackets for reciprocating plunger pumps, hydraulic cylinders, heat exchangers, and complex industrial geometries operating up to 1000°C.
- Up to 1000°C capacity
- 3D CAD Laser Tailored
- Stroke & vibration proof
- Rapid turnaround
Material Performance Matrix
Standard engineering options for Heaton removable thermal insulation systems.
| Specification Parameter | Standard Series (0°C to 260°C) | High-Temp Series (260°C to 550°C) | Ultra High-Temp (550°C to 1000°C) |
|---|---|---|---|
| Outer Jacketing | Silicone Coated Fiberglass (17 oz) | PTFE / Aluminized Fiberglass | Silicone / SS Wire Mesh Reinforced Cloth |
| Insulation Core | E-Glass Needle Mat (1" - 2" Thk) | Hydrophobic Pyrogel / Aerogel | High Purity Silica / Ceramic Fiber Blanket |
| Inner Hot-Side Liner | Silicone Coated Fiberglass | High Temp Stainless Steel Wire Mesh Cloth | Pure Silica Fabric (96% SiO₂) |
| Fastening Hardware | Velcro & Nylon Webbing Strap | SS304 Lacing Hooks & Tie Wire | SS316 Toggle Clamps & Belts |
| Thermal Reduction | Touch Safe (<50°C) | Touch Safe (<55°C) | Touch Safe (<60°C) |
