Gas Chromatography Thermal Jackets
High-precision heated insulation jackets and enclosures for gas chromatograph sample valves, vaporizers, heated injection ports, and analytical columns.
Eliminate Cold Spots & Maintain Strict Temperature Uniformity
In Gas Chromatography (GC) and process analyzer shelters, unheated sample lines, valve manifolds, or cold spots cause heavy hydrocarbon condensation and peak tailing, leading to false compositional readings and costly analyzer downtime.

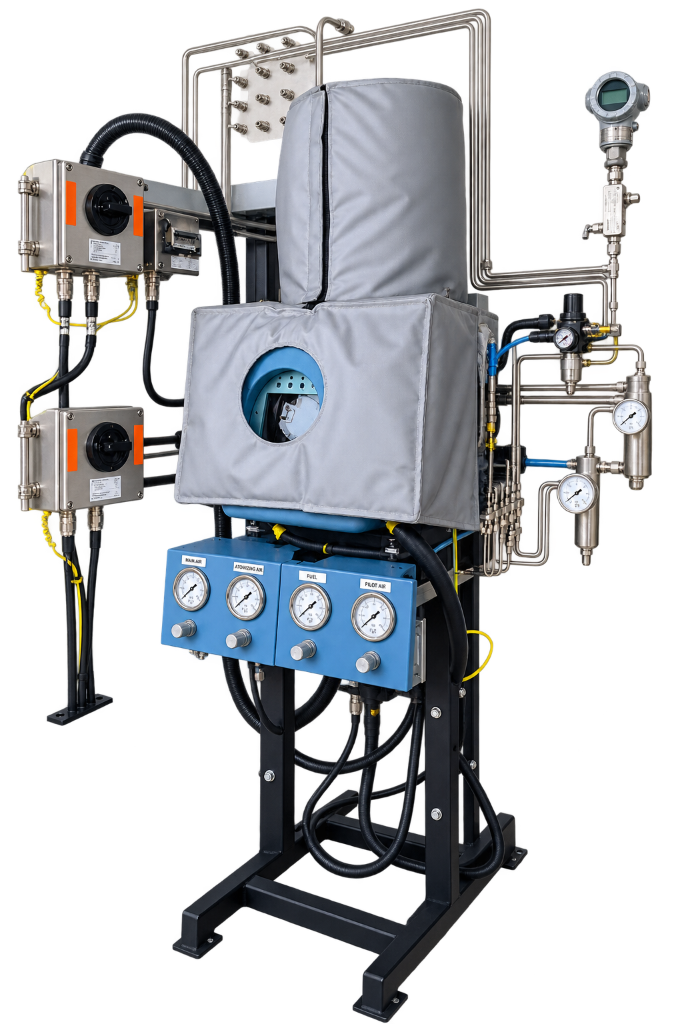

Heaton Gas Chromatography Thermal Jackets provide isothermal heating up to 250°C with integrated resistance wire grids, PT100 RTD sensor pockets, and high-temp silicone/PTFE outer jackets that fit snugly inside crowded analyzer cabinets.
Gas Chromatography Technical Matrix
Custom fabricated for ABB, Emerson Rosemount, Yokogawa, Siemens Maxum, and Agilent GC systems.
| Parameter | Sample Injection Valve Jackets | Vaporizer & Manifold Enclosures | Transfer Line Heated Wraps |
|---|---|---|---|
| Operating Temp Range | Ambient to 250°C | Ambient to 220°C | Ambient to 200°C |
| Heating Element | Etched foil / Inconel wire element | Silicone rubber embedded grid | Self-regulating heating trace |
| Outer Jacketing | PTFE / Silicone Coated Fiberglass | Chemical-resistant Silicone Cloth | Braided Silicone Sleeving |
| Insulation Core | High-Purity Hydrophobic Aerogel | Aerogel Thin Profile (10mm) | Multi-layer E-Glass Mat |
| Closure Mechanism | High-temp Nomex Hook & Loop | Snap Fasteners & Straps | Continuous Spiral Wrap with Straps |
Custom Thermal Solutions For Gas Chromatographs
Provide your analyzer model, sample valve specs, and target operating temperature for a custom quote.
