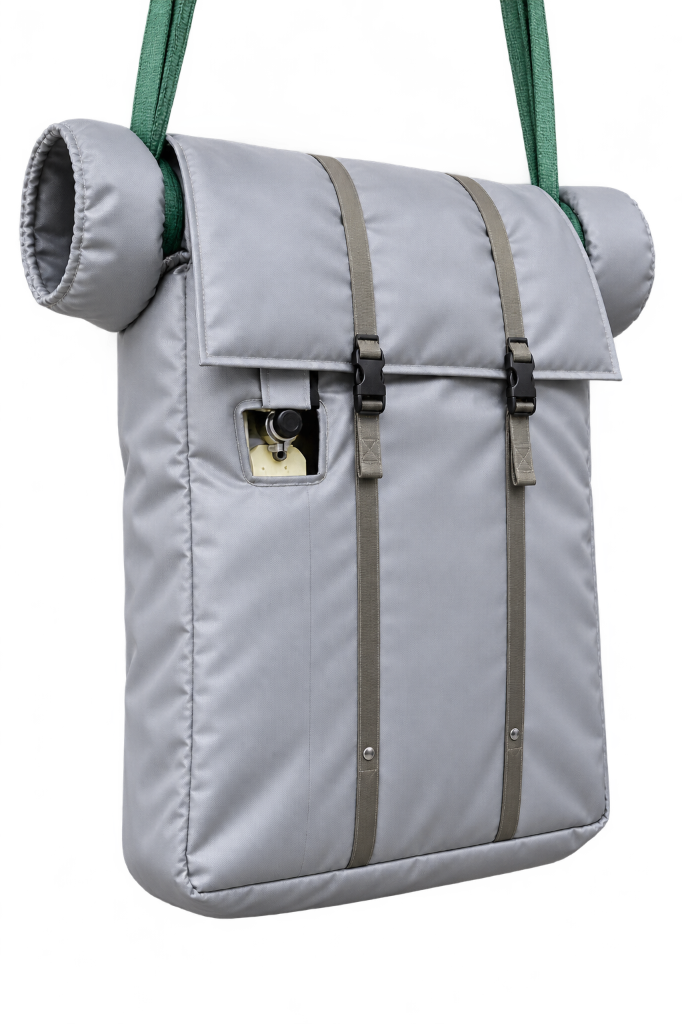

Flowmeter & Flow-Cell Insulation Jackets
High-precision thermal insulation covers and heating jackets for Coriolis meters, magnetic flowmeters, ultrasonic meters, vortex flow sensors, and laboratory optical flow cells.
Prevent Measurement Drift & Protect Sensitive Transmitters
Coriolis mass flow meters, vortex flow sensors, and optical analytical flow cells are sensitive to ambient temperature gradients. Thermal fluctuations cause fluid density shifts, condensation, and signal drift that compromise custody-transfer accuracy.
Heaton Flowmeter & Flow-Cell Jackets are designed with custom neck cutouts that isolate hot process tubes while leaving the electronic transmitter head and digital display exposed to ambient air to prevent overheating.
Flowmeter & Flow-Cell Technical Specs
Compatible with Emerson Micro Motion, Endress+Hauser, Yokogawa, Krohne, ABB, and custom analytical systems.
| Parameter | Coriolis Mass Flow Meters | Vortex & Magnetic Flowmeters | Laboratory Optical Flow Cells |
|---|---|---|---|
| Nominal Line Sizes | 1/4" to 12" Line Sizes | 1/2" to 24" Pipe Diameters | Micro-fluidic & 1/8" - 1" Tubes |
| Operating Temp Range | -50°C to 350°C | -20°C to 260°C | Ambient to 200°C (Precise ±0.5°C) |
| Insulation Core | Hydrophobic Aerogel Mat (15mm - 25mm) | High Density E-Glass Needled Felt | Ultra-thin Aerogel Core |
| Transmitter Protection | Thermal Standoff Collar Barrier | Thermal Standoff Collar Barrier | Integrated Constant Temp Enclosure |
| Fastening Hardware | Nomex Straps & SS D-Rings | Velcro Straps with Quick Buckles | Precision Snap Closures |
Protect Your Measurement Precision Today
Provide your flowmeter make, model, tube geometry, and operating conditions for an exact custom-fit jacket quote.
