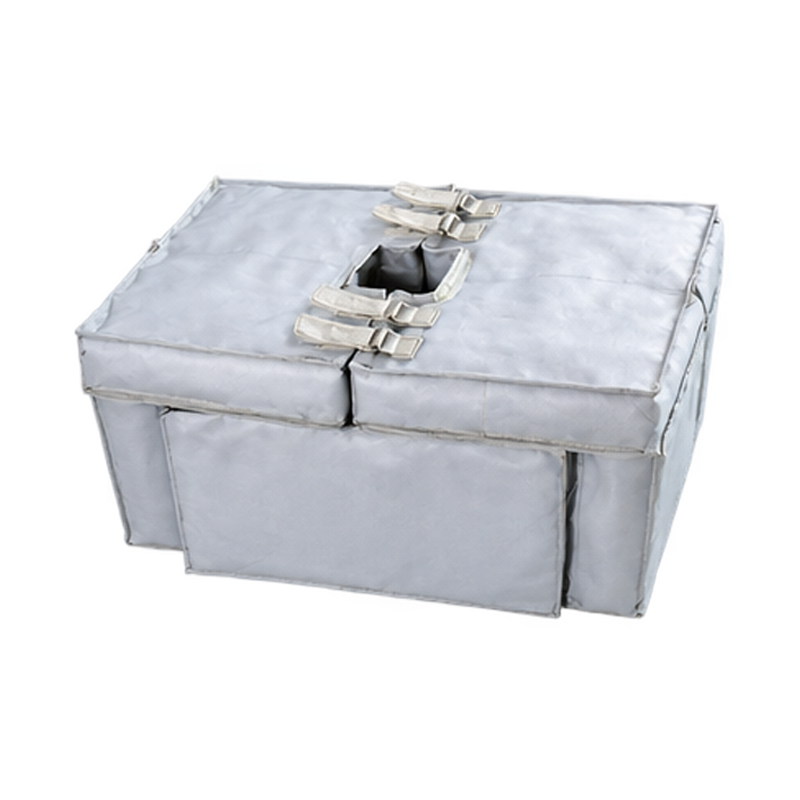

Plunger & Custom Equipment Insulation Jackets
Bespoke 3D CAD-engineered removable thermal jackets for reciprocating plunger pumps, hydraulic cylinders, heat exchangers, and complex industrial geometries.
Custom Protection for Reciprocating Plungers & Complex Assets
High-pressure reciprocating plunger pumps, hydraulic cylinders, and chemical injection skids undergo intense reciprocating motion, vibration, and thermal stress. Standard rigid insulation cannot accommodate these moving components or complex split geometries.
Heaton Plunger & Custom Equipment Jackets are hand-stitched using multi-ply composite fabrics, flexible expansion bellows, and heavy-duty toggle clamps that provide 100% thermal encapsulation without impeding plunger stroke or gland adjustments.
Plunger & Custom Jacket Specs
Tailored for triplex pumps, mud pumps, hydraulic actuators, and specialized process units.
| Parameter | Plunger Pump Fluid Ends | Hydraulic Cylinders & Actuators | Custom Split Box Covers |
|---|---|---|---|
| Operating Temp Range | Up to 450°C (842°F) | Up to 300°C (572°F) | Up to 1000°C (1832°F) |
| Outer Jacketing | Oil-repellent PTFE Fiberglass | Silicone Impregnated Fabric | SS Mesh Reinforced Fabric |
| Insulation Core | Hydrophobic Pyrogel / Aerogel | High Density E-Glass Mat | Silica & Ceramic Fiber Blanket |
| Gland Maintenance | Removable top gland access flap | Split collar with quick velcro | Multi-segment modular panels |
| Fastening Hardware | SS316 Tension Springs & Hooks | Nomex Straps & D-Rings | SS Quick Toggle Clamps |
Custom Thermal Solutions For Specialized Equipment
Provide your plunger pump model, cylinder stroke, or custom drawings for an immediate proposal.
